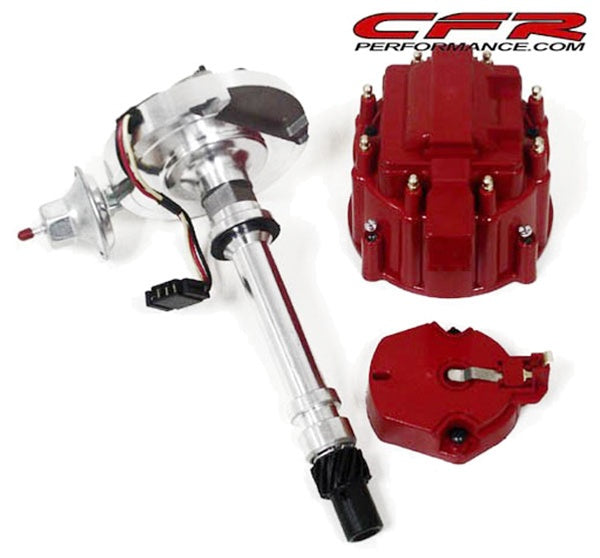

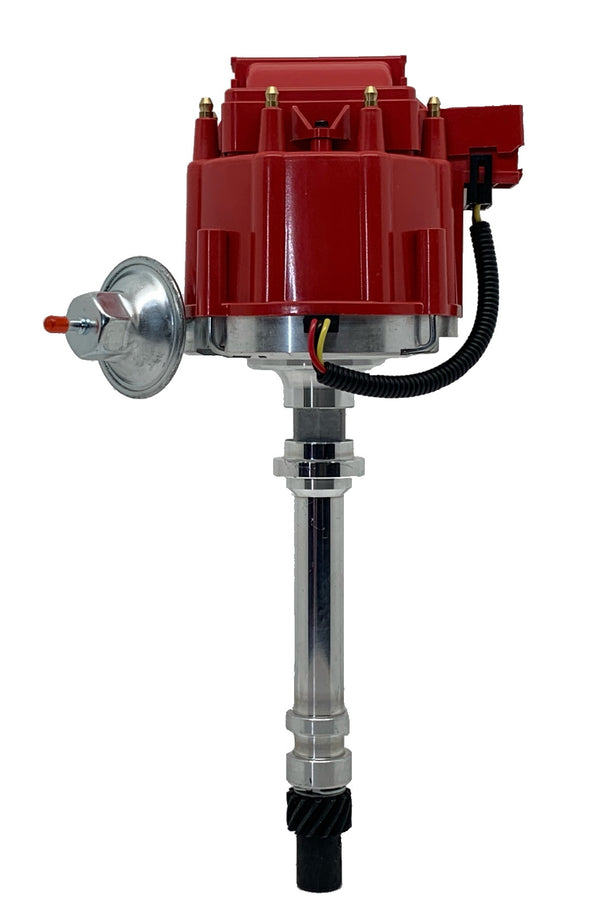

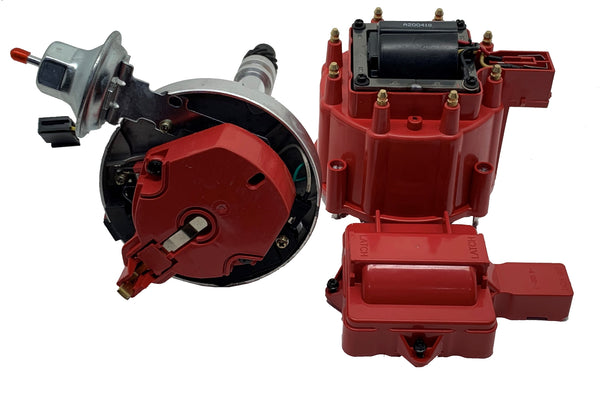

CFR HEI distributors are the perfect upgrade for non-computer controlled engines.
Features include:
1) Fully CNC machined with polished housing.
2) Adjustable vacuum advance canister to improve the economy.
3) Premium caps with brass terminals.
4) A low-saturation ignition module.
5) High output coil which produces 48,000-volt spark through 7,000 RPM.
6) 4340 Chromoly steel bottom gear for use with cast and steel billet cams.
7) True spark alignment for instantaneous response at high RPM.
| TRIGGER STYLE | Magnetic |
| ADVANCE TYPE | Vacuum and Mechanical |
| CAP STYLE | Male/HEI |
| MECHANICAL TACH DRIVE | No |
| SLIP COLLAR | No |
| COIL INCLUDED | Yes |
| COIL TYPE | Internal |
| COIL OUTPUT | 65,000 volts |
| GEAR MATERIAL | Steel |
| HOUSING MATERIAL | Aluminum |
| HOUSING FINISH | Machined |
| IGNITION BOX REQUIRED | No |
| MARINE USE | No |
APPLICATIONS
CHEVROLET, GMC, BUICK, CHECKER, OLDSMOBILE, PONTIAC
Chevrolet Small Block V8 Gen. I
4.3L/262
4.3L/265
4.4L/267
4.6L/283
4.9L/302
5.0L/305
5.0L/307
5.4L/327
5.7L/350
6.6L/400
Chevrolet Big Block V8 Gen. II Mark IV
6.5L/396
6.6L/402
7.4L/454
